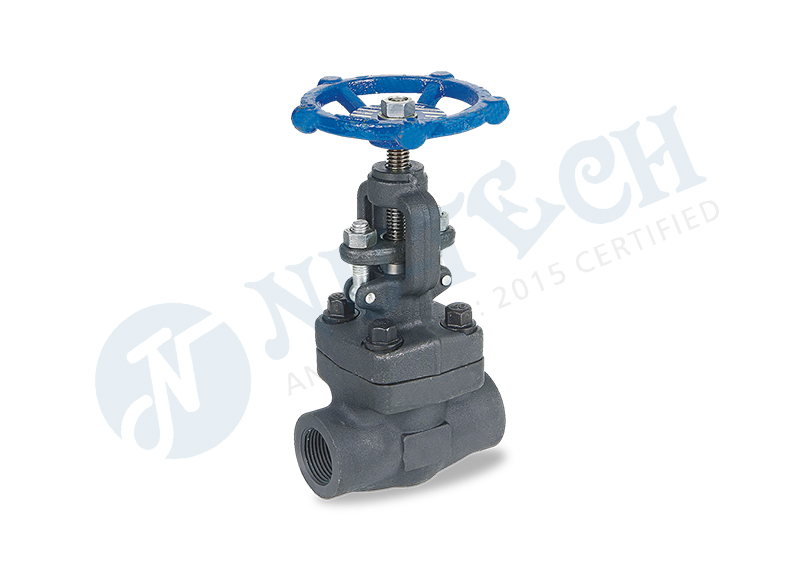

Forged Globe valve

NU-TECH Forged Globe valves are designed and manufactured to provide maximum service life and dependability. ALL check valves meet the design requirements of American Petroleum Institute standard API600 & API 6D. BS EN 13709 and generally, Conform to American Society of Mechanical Engineers standard ASME B16.34. Valves are available in a complete range of body/bonnet materials and trims.

  • Outside Screw & Yoke (OS & Y) type design
  • Bolted Bonnet
  • Body guided disc
  • Choice of Welded bonnet
  • Yoke Integral With bonnet
  • Loose Disc, choice of plug
  • Threaded-in Welded Bonnet
  • Two Piece Stem Drive Renewable in Line
  • Extended Bonnet
  • Rising Stem & Hand Wheel, Horizontal Service

  • 800# (Sizes 1/2” to 2”)
  • 1500# (Sizes 1/2“to 1 1/2")
  • 2500# (Sizes 1/2“to 1")

  • Nace
  • Oxygen Service
  • Hydrogen Service
  • Cryogenic Service

End Connection Screwed End, Flanged End, Butt welding End, Ring type joint
plain end, Flat face finish, Smooth face finish, extended end connection
Socket weld Inlet X Threaded Outlet, Threaded Inlet X Socket Weld Outlet
Design Standard API 602, ASME B16.34
Testing Standard API 598
Screwed End Standard ASME B1.20.1
Socket weld End Standard ASME B16.11
Flanged Standard ASME B16.5
Face to Face Standard Flanged ASME B16.10
Butt weld End Standard ASME B16.25
