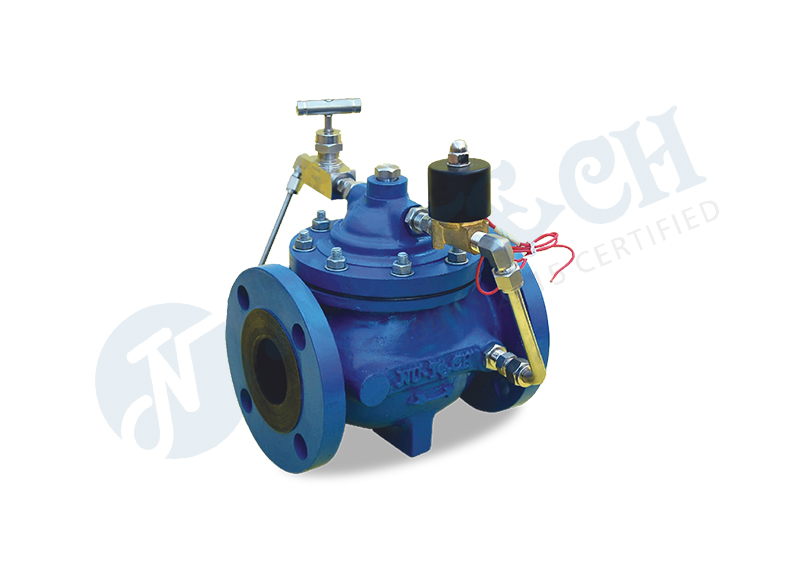

Pump Control/Solenoid On-Off Control valve (ACV-1000)

NU-TECH ACV Pump Control Valves are used to minimize surges commonly associated with the starting and stopping of pumps.

Easily maintained without removal from the line
Single chamber & double chamber.
Replaceable seat ring.
Heavy-duty, nylon-reinforced diaphragm.
Operates automatically off line pressure.
Valves are factory tested.
Diaphragm assembly Guided top and bottom.
Valves equipped with separate adjustable opening and closing speed controls.

It is designed to minimize surges associated with the starting and stopping of pumps.
It closed when pump discharge pressure falls below an adjustable minimum, increasing back pressure against the pump.
It is designed for booster pumps are installed inline on the discharge of the pump.
It is designed for deep well pumps also & it is installed on a bypass line between the pump discharge and the pump check valve

Check function.
Pressure sustaining
Pressure reducing.
Rate of flow feature.

End Connection	Flanged End, Threaded End
Face to Face Standard	Manufacturing Standard
End connection Standard	DIN EN 1092-1, ASME B16.5
Testing Standard	API 598
Sizes	1/2” to 28”
Class	150#, 300#, PN 6, PN 10, PN 16, PN 25
Media	Water
Body Material	CI/CS/SS/Alloy Steel etc.
Trim Material	SS304/SS316 etc.
Soft Seat Material	NITRILE/VITON/EPDM etc.
